Windows

Tip

See Trust GPG Key Locallyfor importing your public key and assigning ultimate trust for use.

Requires ~/.ssh/authorized_keys on target machine with your exported GPG SSH RSA Public Key. See GPG Export Keys. See SSH for remote SSH configuration.

Configure GPG4win

GPG4Win provides middleware to enable Yubikey GPG use. Download gpg4win and verify integrity.

⌘ ➔ sysdm.cpl ➔ Advanced ➔ Environment Variables ➔ User variables for {USER} ➔ Path ➔ Edit ➔ New

  • Path: c:\Program Files (x86)\GnuPG\bin

Add GPG path to end of list for global user profile access.

Configure GPG Agent

⌘ ➔ Device Manager ➔ Software Devices

Get Yubico device name as listed. Show Hidden Devices may be necessary.

Use the full name in scdaemon.conf.

%appdata%\gnupg\scdaemon.conf

# Prevent Windows Hello from acting as an pagent device.
# Results in no key found errors.

# Device Manager Yubico full name.
reader-port Yubico YubiKey OTP+FIDO+CCID 0

%appdata%\gnupg\gpg-agent.conf

enable-ssh-support
enable-putty-support

Restart GPG Agent and Connect Agent to apply changes.

gpgconf --kill gpg-agent

# Once path is set: gpg-connect-agent.exe /bye
"c:\Program Files (x86)\GnuPG\bin\gpg-connect-agent.exe" /bye

Configure Putty

Download Putty.

Putty ➔ Connection ➔ SSH ➔ Auth

  • Attempt authentication using Pageant: ✔
    • Private key file for authentication: {EMPTY}

Save host changes.

Verify Putty Works

  1. Connect with Putty as normal.

  2. A Pin Entry pop-up window should appear. It may not be in focus. Enter your user PIN.

    Pin Entry

  3. Touch key to confirm (key will blink during wait for password).

WinSCP Transfer File Through a Bastion

Import a working GPG Putty configuration into WinSCP. Create a copy of the working configuration and edit it.

Enable GPG Agent Forwarding in Putty

WinSCP ➔ Site

  • Host name: {Internal IP}
  • Port number: {Internal Port}
  • User name: {USER}
  • Password: Empty
  • Private key file: Empty

Define Bastion Tunnel

WinSCP ➔ Site ➔ Advanced Site Settings ➔ Connection ➔ Tunnel

  • Connect through SSH Tunnel: ✔
  • Host name: {Bastion External Address}
  • Port number: {Bastion External Port}
  • User name: {USER}
  • Password: {EMPTY}
  • Private key file: {EMPTY}

Enable SSH Agent Forwarding

WinSCP ➔ Site ➔ Advanced Site Settings ➔ SSH ➔ Authentication

  • Attempt authentication using Pageant: ✔
  • Allow agent forwarding: ✔

Save the configuration and connect. May be prompted for two authentication touches, one for each system.

Run GPG Agent on Login

Scheduled Tasks are inconsistently applied and therefore you will run into issues if you depend on the scheduled tasks to always run at login to refresh your GPG agent. This is compounded by GPG agent occasionally hanging and needing to be force restarted. Resolve by triggering GPG agent refresh on screen unlock events, ensuring that the agent is always ready.

Enable Login/Logoff Events

Computer Configuration ➔ Windows Settings ➔ Security Settings ➔ Advanced Audit Policy Configuration ➔ System Audit Policies - Local Group Policy Object ➔ Logon/Logoff ➔ Audit Other Login/Logoff Events

  • Configure the following audit events: ✔
  • Success: ✔
  • Failure: ✔

Trigger GPG agent refresh on Login/Logoff Event

⌘ ➔ Task Scheduler ➔ Task Scheduler Library ➔ Action ➔ Create Task

  • General:
    • Name: GpgAgentRefreshUnlock
    • Description: Restarts GPG agent on windows unlock
    • Check: Run only when user is logged on
    • Configure for: Windows {VERSION}
    • Hidden: ✔
  • Triggers:
    • Begin the task: On an event
    • Check: Basic
    • Log: Security
    • Source: Microsoft Windows security auditing
    • Event ID: 4801
    • Hidden: ✔
  • Actions:
    • First Action (Always execute first)
      • Action: Start a program
      • Program/Script: gpgconf
      • Add arguments: –kill gpg-agent
    • Second Action (Always execute last)
      • Action: Start a program
      • Program/Script: gpg-connect-agent
      • Add arguments: /bye
  • Conditions: ✘
  • Settings:
    • Allow task to be run on demand: ✔
    • Stop the task if it runs longer than: ✔
    • Stop the task if it runs longer than: 3 days
    • All Remaining: ✘

Forward GPG Agent Through Multiple Servers

Warning

While the connection is active it is possible for others to use them as you while you are connected even though your private credential are on your local machine.

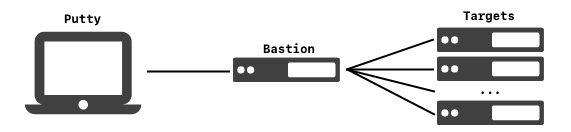

Machines are referred to as putty for your client machine, bastion for the machine you will be SSH'ing through and target for remote SSH targets.

Bastion

Enable GPG Agent Forwarding in Putty

Putty ➔ Connection ➔ SSH ➔ Auth

  • Allow agent forwarding: ✔

Bastion Configuration

/etc/ssh/sshd_config

0644 root:root

# Remove current socket file for forwarding before creating a new one.
StreamLocalBindUnlink yes

# Enable forwarding your credentials again to the next server.
AllowAgentForwarding yes

Confirm new settings are loaded on Bastion.

sshd -T | grep -i allowagent

Target Configuration

Target does not need to enable outbound agent forwarding.

/etc/ssh/sshd_config

0644 root:root

AllowAgentForwarding no

Reference123456

  1. https://developers.yubico.com/PGP/SSH_authentication/Windows.html ↩

  2. https://www.linode.com/docs/guides/gpg-key-for-ssh-authentication/ ↩

  3. https://codingnest.com/how-to-use-gpg-with-yubikey-wsl/ ↩

  4. https://ttmm.io/tech/yubikey/ ↩

  5. https://occamy.chemistry.jhu.edu/references/pubsoft/YubikeySSH/index.php ↩

  6. https://superuser.com/questions/161973/how-can-i-forward-a-gpg-key-via-ssh-agent ↩
