Setup

Carefully follow these instructions before setting up GPG and Yubikeys to remain in a secure state. Failure to follow these instructions may expose private key material to bad actors.

Required Materials

  1. Live USB OS, with persistent storage to setup additional packages. Tails Live USB setup instructions is preferred (most secure), other live USB will work but be less secure. Instructions assume Debian-based system.
  2. Hardware-backed Encrypted USB drive Ironkey (most secure), or USB drive with software encryption using VeraCrypt (less secure).
  3. Yubikey 5 (or other hardware security key support 4096bit RSA certificates).
  4. A complete copy of these instructions or secondary device Internet access.
  5. A photo to associate with your GPG master key.

This assumes usage of an Ironkey with Yubikeys on a Debian-base system for configuration.

Prep Live USB

GPG generation should be done on a air-gapped, temporal, encrypted OS to minimize secret key exposure. Persistent disk should be created so that packages may be installed / updated as needed (e.g. Yubikey manager). All GPG operations should be done offline with the exception of uploading public keys to services.

Set a root password.

Danger

Do not store secret material directly on live USB filesystems.

Network is required for this step. Disable after packages are installed.

# Update and install Yubikey management.
apt update && apt upgrade
apt-add-repository ppa:yubico/stable
apt update
apt install software-properties-common scdaemon hopenpgp-tools gpg
apt install yubikey-manager yubikey-manager-qt

Note

yubikey-manager-qt is a GUI frontend which has limited functionality but does provide easy ways to ensure specific applets are enabled. scdaemon enables smartcard support for GPG.

Prep Ironkey

Tip

Max 16 character password. Ironkey will wipe device after 10 failed attempts and force physical re-insertion after every 3 failed attempts.

Initialize Ironkey

For a new Ironkey or creating a new master key.

Danger

This is data destructive.

/media/user/IRONKEY/linux/linux64/ikd300_initalize

Reset Ironkey

Wipes a working Ironkey to a default state.

Danger

This is data destructive.

/media/user/IRONKEY/linux/linux64/ikd300_resetdevice

Unlock Ironkey

sudo /media/user/IRONKEY/linux/linux64/ikd300_login
  • Run KINGSTON from file browser to mount to /media/user/KINGSTON.

Safe for Secrete Key Material

The Ironkey is the only safe location to store secret key material.

Tip

IronKey may mount readonly if it was previously unmounted dirty. Unlock drive and run a filesystem check.

dosfsck -a {IRONKEY_DEVICE}

Prep Yubikey

Default Yubikey Passwords

  • Default User Pin: 123456
  • Default Admin Pin: 12345678

Yubikey Password/PINs may be up to 127 ASCII characters long.

Verify Genuine Yubikey

Ensure Yubikey is genuine and has not been tampered with during any step of the supply chain.

  1. https://www.yubico.com/genuine
  2. Verify Device.
  3. Touch Yubikey when prompted.

Note

Yubico must be able to see the make and model of the device during the verification process.

Verification Complete is displayed for genuine keys. Failure means potential compromise and should be thrown out after it is confirmed to fail again.

Reset Yubikey

This will destroy any openpgp material on the key and reset to the default key state.

Do this even if the Yubikey is new

ykman openpgp reset

Existing 2FA configurations will be deleted.

Alternatively using the Yubikey Personalization Tool will provide options to do this via a GUI.

### Show current Yubikey card shows with default values.
gpg --card-status
  • If not found, re-insert the key. There is a known race condition that may occur with older GPG libraries.
  • Ensure latest firmware version using Yubikey Manager.
  • Ensure device has CCID mode enabled using Yubikey Manager. Most firmware past 3.1.8 will have this permanently enabled and not listed.

Configure Yubikey

Configure behavior of Yubikey so short touches will provide GPG material, while long touches will provide Yubico OTP. This prevents accidental touches spewing keystrokes into whatever is open. NFC is also disabled to force physical touch to use key.

Swap slots

  1. Yubikey Manager ➔ Applications ➔ OTP
  2. Delete Slot 1.
  3. Configure Slot 2 to use Yubico OTP.

OTP

Tip

Newer keys can just use the swap button.

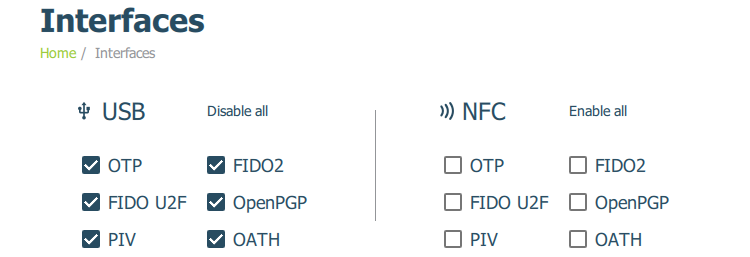

Disable NFC

  1. Yubikey Manager ➔ Interfaces ➔ NFC ➔ Disable All
  2. Save Interfaces.

NFC

Tip

All NFC options are disabled to require physical presence.

Setup OpenPGP on Yubikey

Prepare Yubikey to load GPG key material.

# Edit openpgp application on Yubikey.
gpg --card-edit
> Reader ...........: Yubico YubiKey OTP FIDO CCID 0
> Application ID ...: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
> Version ..........: 3.4
> Manufacturer .....: Yubico
> Serial number ....: XXXXXXXXXX
> Name of cardholder: [not set]
> Language prefs ...: [not set]
> Sex ..............: unspecified
> URL of public key : [not set]
> Login data .......: [not set]
> Signature PIN ....: forced
> Key attributes ...: rsa4096 rsa4096 rsa4096
> Max. PIN lengths .: 127 127 127
> PIN retry counter : 3 3 3
> Signature counter : 0

# Set admin password (Remember to use the Default PIN if needed).
gpg/card> admin
> Admin commands are allowed

gpg/card> passwd
> gpg: OpenPGP card no. XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX detected
>
> 1 - change PIN
> 2 - unblock PIN
> 3 - change Admin PIN
> 4 - set the Reset Code
> Q - quit

Your selection? 3
> PIN changed.

Your selection? Q

# Set user password (Remember to use the Default PIN if needed).
gpg/card> admin
> Admin commands are allowed

gpg/card> passwd
> gpg: OpenPGP card no. XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX detected
>
> 1 - change PIN
> 2 - unblock PIN
> 3 - change Admin PIN
> 4 - set the Reset Code
> Q - quit

Your selection? 1
> PIN changed.

Your selection? Q

# Set name used in the GPG credentials to load.
gpg/card> name
Cardholders surname: {USER LAST NAME}
Cardholders given name: {USER FIRST NAME}

# Set language for GPG user.
gpg/card> lang
Language preferences: en

#  Set URL to location of user's GPG public key.
gpg/card> url
URL to retrieve public key: https://keys.openpgp.org/vks/v1/by-fingerprint/{KEYID}

# Set login to GPG email account used.
gpg/card> login
Login data (account name): {GPG USER EMAIL ADDRESS}

# Set forcesig to always require PIN to access GPG key material.
gpg/card> forcesig

# Verify configuration and quit to save.
gpg/card> {PRESS ENTER}
> Reader ...........: Yubico YubiKey OTP FIDO CCID 0
> Application ID ...: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
> Version ..........: 3.4
> Manufacturer .....: Yubico
> Serial number ....: XXXXXXXXXX
> Name of cardholder: {USER FIRST NAME} {USER LAST NAME}
> Language prefs ...: en
> Sex ..............: unspecified
> URL of public key : https://keys.openpgp.org/vks/v1/by-fingerprint/{KEYID}
> Login data .......: {GPG USER EMAIL ADDRESS}
> Signature PIN ....: forced
> Key attributes ...: rsa4096 rsa4096 rsa4096
> Max. PIN lengths .: 127 127 127
> PIN retry counter : 3 3 3
> Signature counter : 0

gpg/card> quit

Require touch for each Authentication, Encryption, or Signing Request

ykman openpgp keys set-touch aut fixed
ykman openpgp keys set-touch sig fixed
ykman openpgp keys set-touch enc fixed

Tip

Fixed is the same as on but requires a new certificate to be loaded if this option is ever disabled.
